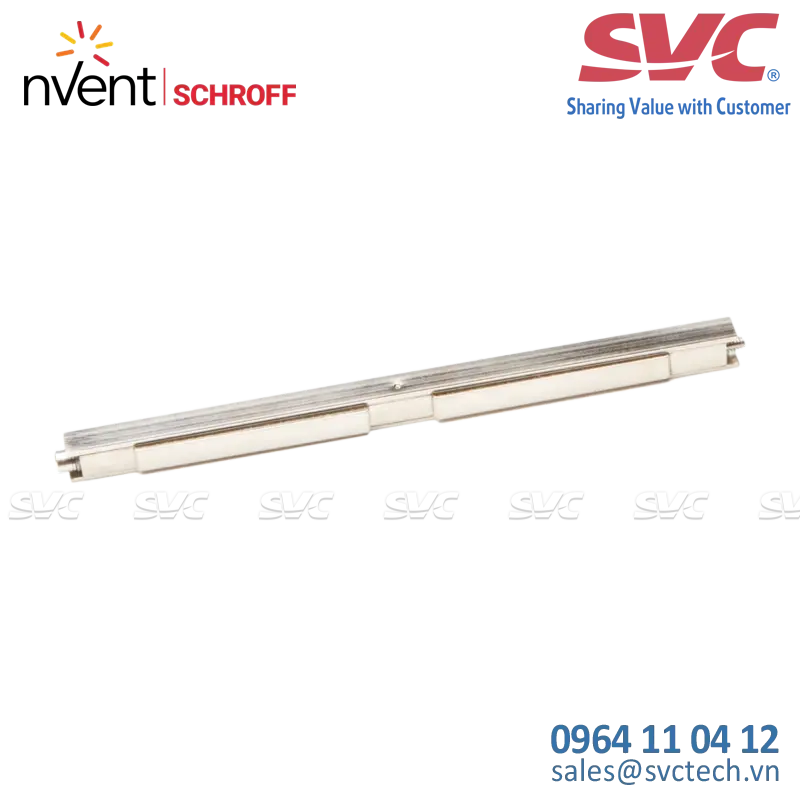

The Series 48-5 features a U-shaped channel design to ensure even distribution of force across the board module assembly and facilitate in thermal transfer.
⚠WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds), ...which is known to the State of California to cause cancer and reproductive health issue. For more information, go to www.P65Warnings.ca.gov.
Thông số kỹ thuật
- Length 76.2 mm (3.0") to 279.4 mm (12.0"), 12.7 mm (0.5") increments
- 5 segment, shafted design
- Flexible mounting options
- Profile 7.60 mm (0.300") x 6.35 mm (0.250")
- Available with gold chem film, clear chem film, black anodized, hard black anodized, or electroless nickel plating
- Screw actuated
- Max expansion 8.13 mm (0.320")
- Weight 1.42 g/cm (0.120 oz/")
- For cold wall applications
- Average clamp force (5", black anodized) = 333 lbs
- Torque limiting option available; ideal for 2nd level maintenance
Quý khách có nhu cầu đặt mua mã hàng 48-5vim-11-l-ln vui lòng liên hệ Hotline/Zalo: 0964110412 hoặc E-mail: sales@svctech.vn để nhận được báo giá tốt nhất.
