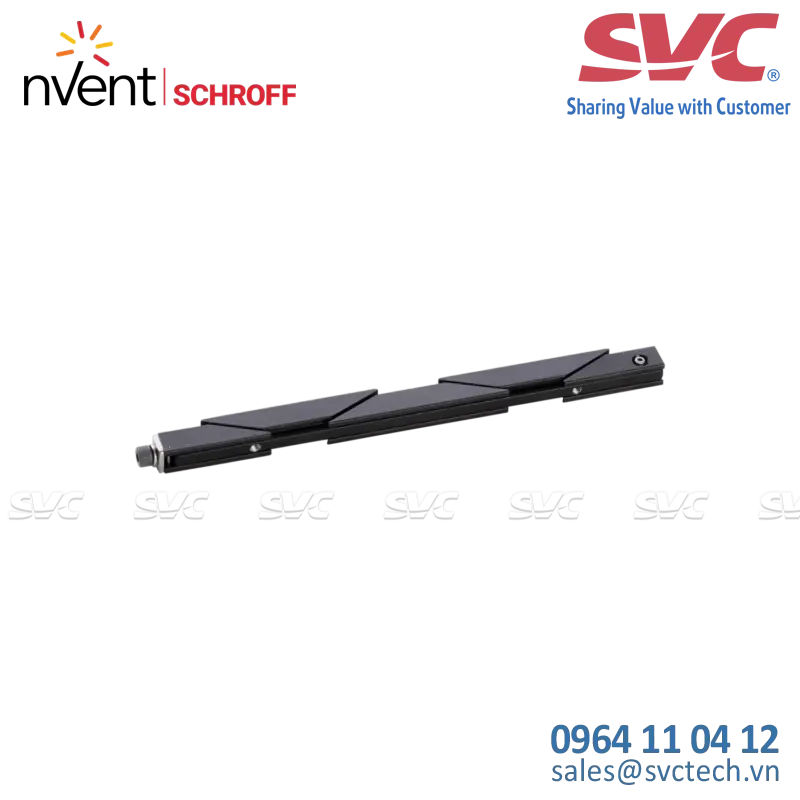

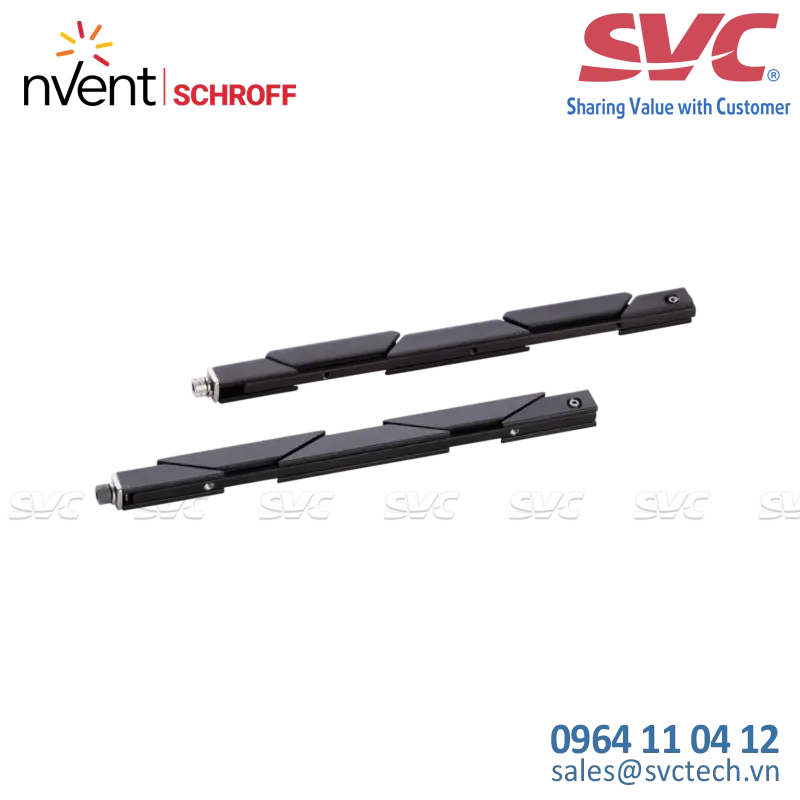

The Series 265HC Card Lok also features a lighter weight, narrow profile ideal for retaining PCBs that are densely populated within the enclosure. The shafted design provides more uniform clamping force over the length of the Card Lok, while maintain...ing wedge and body alignment for easier installation.
⚠WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds), which is known to the State of California to cause cancer and reproductive health issue. For more information, go to www.P65Warnings.ca.gov.
Thông số kỹ thuật
- Weight 0.89 g/cm (0.80 oz/")
- Max expansion 7.37 mm (0.290")
- Length 96.5 mm (3.80") to 172.7 mm (6.80"), 12.7 mm (0.5") increments
- Average clamp force (4.80", black anodized) = 1091 lbs
- Screw actuated
- Available with black anodized, hard black anodized, or electroless nickel plating
- 5 segment, shafted design
- Flexible mounting options
- Profile 5.72 mm (0.225") x 5.84 mm (0.230")
- For cold wall applications
Quý khách có nhu cầu đặt mua mã hàng a265hc-480t2 vui lòng liên hệ Hotline/Zalo: 0964110412 hoặc E-mail: sales@svctech.vn để nhận được báo giá tốt nhất.
